不銹鋼材料，單剪梁結構，膠封，壓向承載。
防護等級IP67
適用于地磅、汽檢線、料斗秤及各類電子稱重設備。
推薦選擇型號：
| xxkg | C3/C5/A5S/A5M/B10S | B8D-xx-xxkg-6B |
| xxt | C3/C5/A5S/A5M/B10S | B8D-xx-xxt-6B |
| xxlb | A5S/A5M/B10S | B8D-xx-xx-6YB |
| xxklb | A5S/A5M/B10S | B8D-xx-xxk-6YB |
| 250lb | C3 | B8D-C3-250-6YB |
| 15klb | C3 | B8D-C3-15K-6YB |
| 20klb | C3 | B8D-C3-20K-6YB |
| 200kg-500kg通過OIML C5級認證 500kg-5t通過OIML C3級測試 200kg-5t(500lb-10klb)通過NTEP A5S/A5M/B10S級認證 | ||
技術指標
| t | 0.5/1/2/5 | |||||
| klb | 0.25/0.5/0.75/1/1.5/2/2.5/2.5KLE/3/4/5/5KSE/7.5/10/15/20 | |||||
| 精度 | C3 | C5 | A5S | A5M | B10M | |
| 認證 | OIML R60 C3 | OIML R60 C5 | III 5000單只 | III 5000多只 | III 10000多只 | |
| 最大檢定分度數 | n max | 3000 | 5000 | 5000 | 5000 | 10000 |
| 最小檢定分度值 | v min | Emax/10000 | Emax/18000 | Emax/15000 | Emax/15000 | Emax/10000 |
| 綜合誤差 | (%FS) | ≤±0.020 | ≤±0.01 | ≤±0.018 | ≤±0.026 | ≤±0.050 |
| 蠕變 | (%FS/30min) | ≤±0.016 | ≤±0.012 | ≤±0.012 | ≤±0.017 | ≤±0.040 |
| 溫度對輸出靈敏度的影響 | (%FS/10℃) | ≤±0.011 | ≤±0.007 | ≤±0.009 | ≤±0.013 | ≤±0.040 |
| 溫度對零點輸出的影響 | (%FS/10℃) | ≤±0.015 | ≤±0.014 | ≤±0.010 | ≤±0.014 | ≤±0.020 |
| 輸出靈敏度 | (mv/v) | 3.0±0.008 | ||||
| 輸入阻抗 | (Ω) | 350±3.5 | ||||
| 輸出阻抗 | (Ω) | 350±3.5 | ||||
| 絕緣阻抗 | (MΩ) | ≥5000(50VDC) | ||||
| 零點輸出 | (%FS) | ≤±1.0 | ||||
| 溫度補償范圍 | (℃) | -10～+40 | ||||
| 允許使用溫度范圍 | (℃) | -35～+70 | ||||
| 推薦激勵電壓 | (V) | 5～12(DC) | ||||
| 最大激勵電壓 | (V) | 18(DC) | ||||
| 安全過載范圍 | (%FS) | 150 | ||||
| 極限過載范圍 | (%FS) | 300 | ||||
| ATEX等級（可選） | II 1G Ex ia II 1C T4 | II 1D Ex iaD20 T73℃ | II 3G Ex nL II C T4 | |||

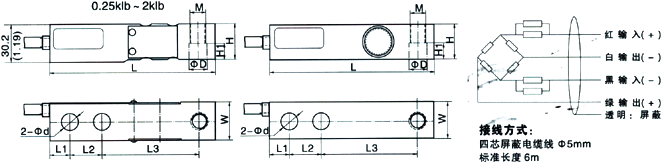

外形尺寸mm(inch)
| 尺寸 | L | L1 | L2 | L3 | d | H | W | D | H1 |
| 250lb,500lb,750lb,1Klb,1.5Klb,2Klb | 130 (5.12) | 15.7 (0.62) | 25.4 (1.0) | 76.2 (3.0) | 13.46 (0.53) | 28.4 (1.12) | 30.7 (1.20) | 13.4 (0.53) | 14.22 (0.56) |
0.5t,1t,2t 2.5Klb,3Klb,4Klb,5KSE | 130 (5.12) | 15.7 (0.62) | 25.4 (1.0) | 76.2 (3.0) | 13.46 (0.53) | 31.32 (1.23) | 31.32 (1.23) | 13.4 (0.53) | 15.75 (0.62) |
3t,5t 2.5KSE,5Klb,7.5Klb,10Klb,15Klb | 171 (6.73) | 19 (0.75) | 38.1 (1.5) | 95.2 (3.75) | 20.65(0.81) 19.81(0.78) | 36.8 (1.45) | 36.8 (1.45) | 20.65(0.81) 19.8(0.78) | 19.05 (0.75) |
| 20Klb | 222.25 (8.75) | 25.4 (1.0) | 50.8 (2.0) | 120.7 (4.75) | 26.9 (1.06) | 49.5 (1.95) | 49.5 (1.95) | 27.56 (1.08) | 24.75 (0.97) |
